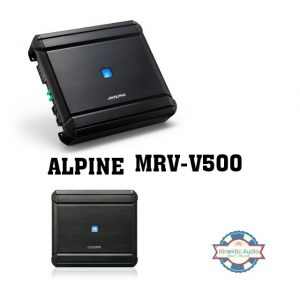

Alpine MRV-V500 –  4 Channel + Mono Digital V-Power Amplifier

General

Power Requirements: 14.4 V.DC (11-16V allowable)

Input Sensitivity Subwoofer (RCA Input): 0.2 – 4.0 V

Input Sensitivity CH 1-4 (RCA Input): 0.2 – 4.0 V

Input Impedance: >10k Ohms

Frequency Response Subwoofer (+0, -3dB: 1W into 4 ohms): 10Hz – 400Hz

Frequency Response CH 1-4 (+0, -3dB: 1W into 4 ohms): 10Hz – 45kHz

Frequency Response Subwoofer (+0, -1dB: 1W into 4 ohms): 20Hz – 300Hz

Frequency Response CH 1-4 (+0, -1dB: 1W into 4 ohms): 20Hz – 20kHz

THD+N (10W into 4 Ohms): ≤ 0.02%

THD+N (10W into 2 Ohms): ≤ 0.03%

THD+N (Rated Power into 4 Ohms): ≤ 0.07%

THD+N (Rated Power into 2 Ohms): ≤ 0.09%

Damping Factor Subwoofer (10W into 4 Ohms at 100Hz): > 500

Damping Factor CH 1-4 (10W into 4 Ohms at 100Hz): > 90

Signal to Noise (1W into 4 Ohms): > 81 dB

Signal to Noise CH 1-4 (Rated Power into 4 Ohms): > 98 dB

Signal to Noise Subwoofer (Rated Power into 4 Ohms): > 104 dB

Weight: 2.57 kg
